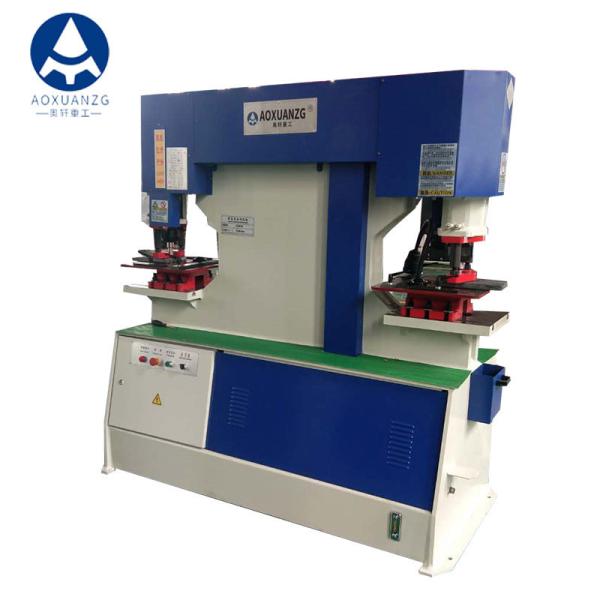

Hydraulic ironworker New style hydraulic combined iron worker punching machine
*Aoxuan's Q35Y series industrial-grade hydraulic ironworker machine featuring multiple functions, including: round
hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate
bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cu
tting; angle bending and pipe notching.
*Temperature cooling system: When the hydraulic ironworker machine is working, you can read the temperature
of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default confi
guration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system
Main standard properties components of hydraulic ironworker machine: 1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Dual Footswitch controlled work separately
10. Easy Adjustable stroke control with ruler
11. Indicator on both hydraulic cylinders
12. Electric back gauge auto stop
13. Moveable working light that can be placed at any desired position
14. Most important easy maintenance
Details:
Technical Parameters:
| Profile steel | Round bar | Square bar | Equal angle steel | T-Bar | Joist | Channel |
| 90°shearing | 45°shearing | 90°shearing | 45°shearing |
| Q35Y-16 | 45 | 40*40 | 125*125*12 | 50*50*5 | 125*125*12 | 60*60*8 | 126*74*5 | 126*53*5.5 |
| Q35Y-20 | 50 | 50*50 | 140*140*12 | 50*50*5 | 140*140*12 | 70*70*10 | 160*86*6 | 160*60*6.5 |
| Q35Y-25 | 60 | 5050 | 160*160*14 | 60*60*6 | 160*160*14 | 80*80*10 | 200*102*9 | 210*75*9 |
| Q35Y-30 | 65 | 55*55 | 180*180*16 | 60*60*6 | 180*180*16 | 80*80*10 | 280*124*10.9 | 280*86*11.5 |
| Q35Y-40 | 70 | 60*60 | 200*200*18 | 100*100*10 | 180*180*16 | 80*80*10 | 300*126*11 | 300*89*12 |
| Q35Y-50 | 80 | 65*65 | 200*200*20 | 120*120*10 | 180*180*16 | 80*80*10 | 320*130*10 | 320*92*12
|
Customer & EXPO:
FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.
2. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
3. Payment terms? T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest
70%paid before shipment.
